2.200 د.إ

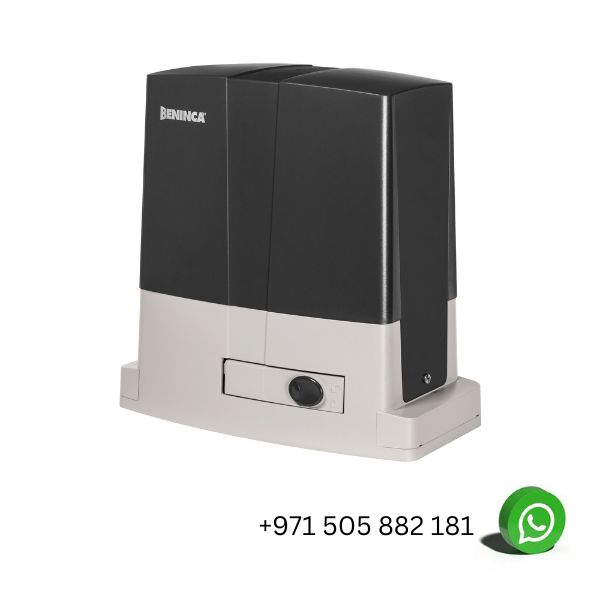

230 Vac gear motor with integrated control unit and encoder | The encoder device ensures crush prevention and precision in the gate moving phases | Full metal mechanics and oil lubrication ensure maximum gear durability. The type of oil used is also particularly effective, and ensures maximum efficiency even at low temperatures | Reduced mechanical wear on components
Technical Data
| Power supply | 230 Vac (50-60Hz) |
| Motor supply | 230 Vac |
| Max absorbed current | 2.6 A |
| Maximum thrust | 940 N |
| Opening speed | 10.5 m/min |
| Duty cycle | 40% |
| Protection level | IP44 |
| Pinion for rack | M4 Z18 |
| Operating temperature | -20°C /+50°C |
| Lubrication | OIL |
| Maximum gate weight | 800 kg |
| Weight | 14.6 kg |
| N. motors per pallet | 40 |
| Kit weight | 15.4 kg |
| N. kits per pallet | 40 |
