SOMFY IXENGO JS 230V – Swing Gate Motor

• Gate weight: 250kg, length: to 3m
• Opening time up to 90°: 7-19s
• 2 Keytis RTS 2-channel remote controls, lamp, photocell set
• Semi-intensive use
• Power supply/motor power supply: 230V/230V
• Somfy Ixengo JS 230V RTS ECO Comfort Pack,
• set for swing gates o 250 kg weight per gate leaf (1216546).
• Special application for installation: Fix & Go
• possibility to set operating parameters
• non-retractable mechanism ensures very high
• resistance to heavy pressure wind and attempted forcible opening.
• easy and safe disengagement with individual key
• adjustable torque value.

Technical Data of the Actuator:

• main power: 220-230 V
• motor power supply: 230 VDC
• power supply for external lighting: 230V-60W
• accessory power supply: 24 V DC / 350 mA
• drive force: 3000N
• opening time to 90 ° without slowing area and maximum speed: 7 to 19 seconds
• Number of storable remote control devices: max. 128 channels
• working temperature: -20 ° C to +60 ° C
• security class: IP 54

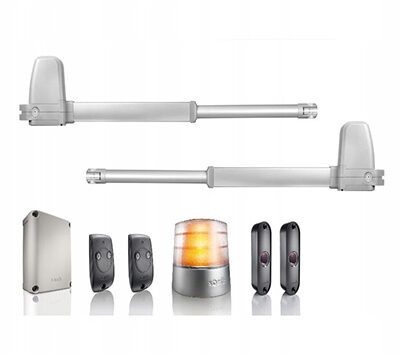

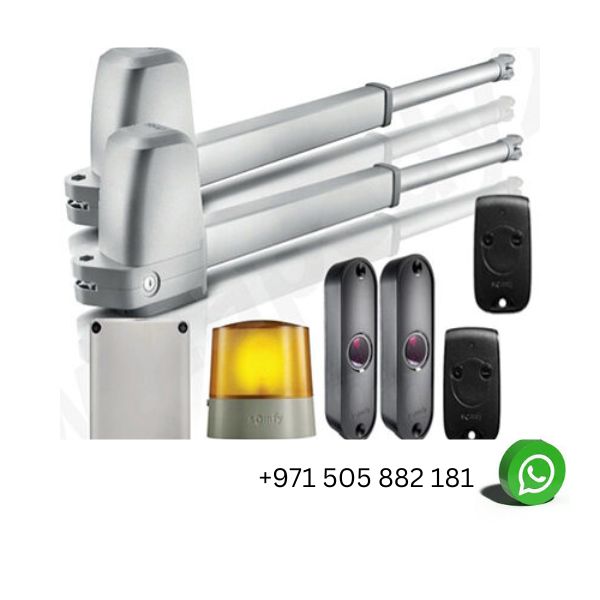

Somfy Ixengo Js Package Contains:

• 2 x Actuator Ixengo JS 230V.
• 1 x switch CB 230 RTS.

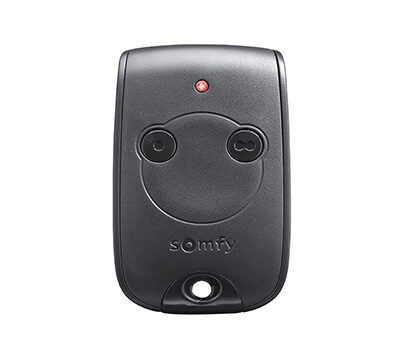

• 2 x Keytis RTS 2-channel remote control.

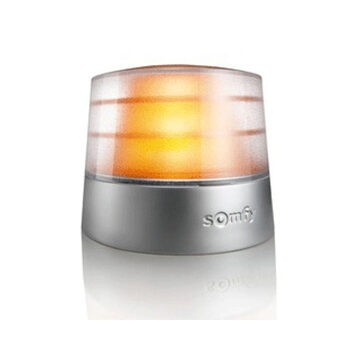

• 1 x Lamp ECO Pro 230V
• 1 x Set of Master Pro photocells Bitech.
• 1 x Push Button.

Documents SOMFY IXENGO JS 230V.
